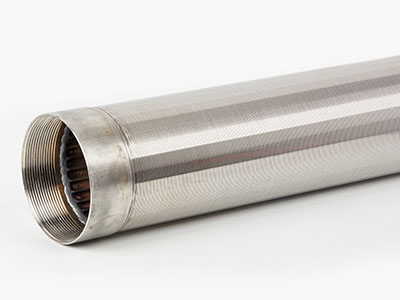

Standard wedge wire wrapped screen pipe (external circumferential wire and axial internal support rods) is a kind of strainers that flow from outside to inside filtration, with smooth external screen surface. This type wedge wire screen pipe is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine.

WEB WIRE MESH can offer wedge wire wrapped screen pipe in the standard specifications, the slot size from 0.2 mm to 5 mm, while pipe diameter from 25 mm to 2500 mm, and manufacture pipe length is up to 12 m, the wedge wire screen pipe is commonly constructed with materials of grade 304 (1.4301) stainless steel.

Benefits

Precision openings

Continuous slot opening ensures better flow performances

Flow outside to inside

Easy cleaning

Suitable for most applications

Materials

Standard wedge wire wrapped screen pipe is available in three different series of wire materials:

Austenitic stainless steel 200 and 300 series: Grade 201 (1.4372), Grade 202 (1.4373), Grade 304 (1.4301), Grade 304L (1.4306), Grade 316 (1.4401), Grade 316L (1.4404), Grade 321 (1.4541)

Ferritic stainless steel: Grade 430 (1.4016)

Martensitic stainless steel: Grade 410 (1.4006), Grade 420 (1.4021 )

Applications

Nozzles

Resin traps

Filter cartridges

Fish Diversion

Water intake pupm

Wastewater treatment

Sand control screen

Rotating drum screens with external feed

Type

Technical parameter

Standard wedge wire wrapped screen pipe data sheet

When ordering or requesting a quote for standard wedge wire wrapped screen pipe, please specify:

Number of pipes

Wedge wire eg. 2.8 mm x 5.0 mm

Slot Hole eg. 0.4 mm

Pipe diameter eg. 219 mm

Pipe length eg. 6 m

Material eg. Grade 304 (1.4301)

Standard & Compare
