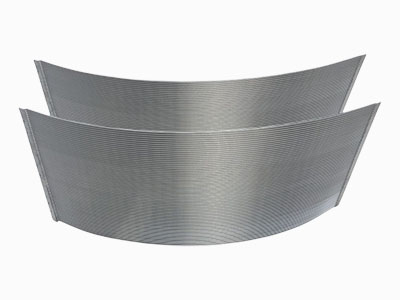

Standard sieve bend screen is manufactured by wrapping and welding vee type profile wires cylindrically around support rods, then be made into panel screen through cutting and radian processing. the screen curved in profile and operates that more effectively than flat screen panels in the same application. As the flows over the inclined screen surface, vee shape profile wires provides a sequence of edges, thus enable its leading edge to cut the flow and collect liquid and smaller solid particles in the processing. The much larger particles will remaining on the surface, eventually slide down to the bottom of the screen.

WEB WIRE MESH can offer sieve bend screen in the standard specifications, the slot size range from 0.2 mm to 1.0 mm, while arc length range from 800 to 2130 mm, and manufacture width is from 610 mm up to 2438 mm, the sieve bend screen is commonly constructed with materials of grade 304 (1.4301) stainless steel.

Benefits

Long or short radius

V type wire, non-clogging

Wear and corrosion resistance

Good effect of dehydration

Simple installation

Low maintenance costs

Longer lifetime

Materials

Sieve bend screen is available in three different series of wire materials:

Austenitic stainless steel 200 and 300 series: Grade 201 (1.4372), Grade 202 (1.4373), Grade 304 (1.4301), Grade 304L (1.4306), Grade 316 (1.4401), Grade 316L (1.4404), Grade 321 (1.4541)

Ferritic stainless steel: Grade 430 (1.4016)

Martensitic stainless steel: Grade 410 (1.4006), Grade 420 (1.4021 )

Applications

Corn wet milling

Starch processing

Manure separation

Coal mining

Sand plant

Pulp & paper

Water intake system

Fish diversion

Municipal wastewater plant

Type

Currently, there are five kinds of model in standard sieve bend screen production:

45 degree x 1016 mm radius, 800 mm arc length

45 degree x 2032 mm radius, 1600 mm arc length

60 degree x 1016 mm radius, 1065 mm arc length

60 degree x 2032 mm radius, 2130 mm arc length

120 degree x 760 mm radius, 1592 mm arc length

Technical parameter

Standard sieve bend screen data sheet

When ordering or requesting a quote for standard sieve bend screen, please specify:

Number of panles

Wedge wire eg. 2.2 mm x 4.5 mm

Slot Hole eg. 0.4 mm

Model eg. 45 degree x 1016 mm radius, 800 mm arc length

Panel width eg. 610 mm

Material eg. Grade 304 (1.4301)
