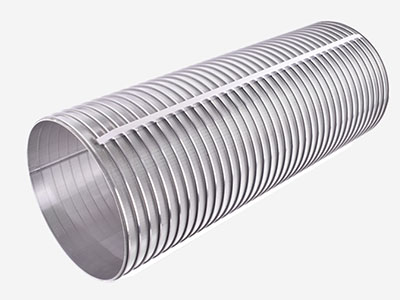

Internal axial wedge wire screen pipe (internal axial wire with external circumferential support rods) is a kind of strainers that flow from inside to outside filtration. It is made of wrapped screen pipe, forming into reverse axial screen pipes by cutting, re-rolled, welded and other series of processes, thus the working surface on the inside is smooth and not interrupted.

WEB WIRE MESH can offer internal axial wedge wire screen pipe in the standard specifications, the slot size range from 0.25 mm to 1 mm, while pipe diameter from 80 mm to 914 mm, and manufacture pipe length is up to 3 m, the wedge wire screen pipe is commonly constructed with materials of grade 304 (1.4301) stainless steel.

Benefits

Flow inside to outside

Smooth internal screen surface

Strong construction

Materials

Internal axial wedge wire screen pipe is available in three different series of wire materials:

Austenitic stainless steel 200 and 300 series: Grade 201 (1.4372), Grade 202 (1.4373), Grade 304 (1.4301), Grade 304L (1.4306), Grade 316 (1.4401), Grade 316L (1.4404), Grade 321 (1.4541)

Ferritic stainless steel: Grade 430 (1.4016)

Martensitic stainless steel: Grade 410 (1.4006), Grade 420 (1.4021 )

Applications

Screw press

Automatic filters

Dewatering systems

Rotating drum screens with internal feed

Type

Technical parameter

Internal axial wedge wire screen pipe data sheet

When ordering or requesting a quote for internal axial wedge wire screen pipe, please specify:

Number of pipes

Wedge wire eg. 1.5 mm x 2.8 mm

Slot Hole eg. 0.35 mm

Pipe diameter eg. 133 mm

Pipe length eg. 500 mm

Material eg. Grade 304 (1.4301)
