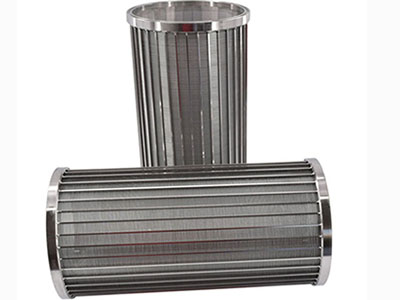

Reverse formed wedge wire screen pipe (internal circumferential wire with external axial support rods) is a kind of strainers that flow from inside to outside filtration, with smooth working surface inside. This type wedge wire screen pipe is manufactured by wrapping and welding stainless steel V-shaped profile wire cylindrically around support rods under automatic specialized wedge wire screen machine, then be made to screen pipe through cutting, reverse rolled, welded processing.

WEB WIRE MESH can offer reverse formed wedge wire screen pipe in the standard specifications, the slot size from 0.2 mm to 1 mm, while pipe diameter from 100 mm to 914 mm, and manufacture pipe length is up to 3 m, the wedge wire screen pipe is commonly constructed with materials of grade 304 (1.4301) stainless steel.

Benefits

Re-rolled construction

Flow from inside to outside

Smooth internal screen surface

Materials

Reverse formed wedge wire screen pipe is available in three different series of wire materials:

Austenitic stainless steel 200 and 300 series: Grade 201 (1.4372), Grade 202 (1.4373), Grade 304 (1.4301), Grade 304L (1.4306), Grade 316 (1.4401), Grade 316L (1.4404), Grade 321 (1.4541)

Ferritic stainless steel: Grade 430 (1.4016)

Martensitic stainless steel: Grade 410 (1.4006), Grade 420 (1.4021 )

Applications

Cylinders

Screw Press

Filter baskets

Rotating drum screens with internal feed

Type

Technical parameter

Reverse formed wedge wire screen pipe data sheet

When ordering or requesting a quote for reverse formed wedge wire screen pipe, please specify:

Number of pipes

Wedge wire eg. 2.2 mm x 4.5 mm

Slot Hole eg. 0.35 mm

Pipe diameter eg. 600 mm

Pipe length eg. 1.5 m

Material eg. Grade 304 (1.4301)
