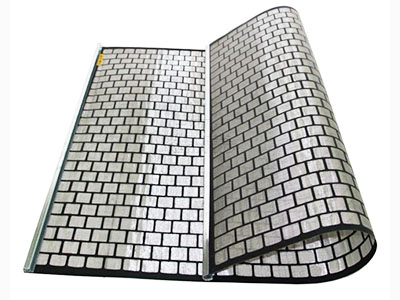

Hook strip soft screen is made of stainless steel wire mesh of 2 or 3 layers close bonding as one, which without metal plate. The filtering layer screen and bearing layer screen is according requirements, The upper screen is more fine, the stress layer screen is coarse, usually the screening layer use 40-80mesh, the stress layer use 20 mesh, when screening layer use 100-1200mesh, the stress layer use 30mesh, when screening layer is bigger than 150 mesh, the stress layer use 40mesh. The benefit of the hook strip soft screen is effective filtration area is bigger than plate screen and the price is lower, but the service life is short.

Benefits

Increased effective filtration area

Easy to disassemble

Materials

Hook strip soft screen is available in three different series of wire materials:

Stainless steel 200 series : Grade 201, Grade 202

Stainless steel T 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321

Stainless steel 400 series : Grade 410, Grade 420, Grade 430

Applications

Oil and gas drilling

Coal mining

Type

Technical parameter

Hook strip soft screen data sheet

When ordering or requesting a quote for hook strip soft screen, please specify:

Number of panels

Model eg. NJ-861

Mesh eg. 20 mesh and 100 mesh

Panel size eg. 1800 mm x 560 mm

Material eg. Grade 304 (1.4301)

Standard & Compare
