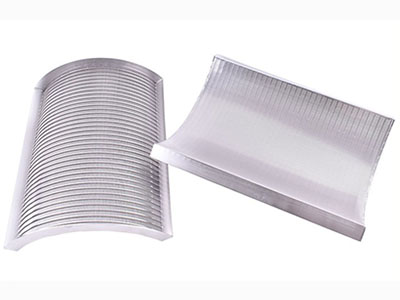

Sieve bend screen can be custom made and designed for application in a wide range of industries. The screen is manufactured by flat wedge wire screen through radian processing, creat a curved face of the screen, separating solids and liquids depending on centrifugal force and gravity.The water with small particles falling through the screen slot, while larger particles are retained on and continue down to the bottom of the screen.

WEB WIRE MESH can offer sieve bend screen in the custom made specifications, the radian range from 10 degree to 120 degree, while radius from 0.6 m to 3.05 m, and manufacture arc length is from 0.42 m up to 1.6 m, the sieve bend screen is commonly constructed with materials of grade 304 (1.4301) stainless steel.

Benefits

Better flow rate

V type wire, non-clogging

Simple to install, self cleaning

Stainless steel construction

Materials

Custom made sieve bend screen is available in three different series of wire materials:

Austenitic stainless steel 200 and 300 series: Grade 201 (1.4372), Grade 202 (1.4373), Grade 304 (1.4301), Grade 304L (1.4306), Grade 316 (1.4401), Grade 316L (1.4404), Grade 321 (1.4541)

Ferritic stainless steel: Grade 430 (1.4016)

Martensitic stainless steel: Grade 410 (1.4006), Grade 420 (1.4021 )

Applications

Vibrating screen

Water intake system

Wastewater treatment

Type

Currently, there are arious of model in custom made sieve bend screen production:

10 degree x 2.54 m radius, 0.42 m arc length

25 degree x 2.54 mm radius, 1.12 m arc length

50 degree x 1.375 mm radius, 1.2 m arc length

When ordering or requesting a quote for custom made sieve bend screen, please specify:

Number of panles

Wedge wire eg. 1.5 mm x 2.38 mm

Slot Hole eg. 0.5 mm

Model eg. 25 degree x 2.54 mm radius, 1.12 m arc length

Panel width eg. 610 mm

Material eg. Grade 304 (1.4301)
