In order to ensure that you receive a good quote for wedge wire screen flat panel , please contact us. 

TECHNICAL POINTS

Standard Screen Tolerances (+/- 0.002), (+/-1/16”) on any fabricated parts

All units entered will be taken as inches unless specified

Technical information

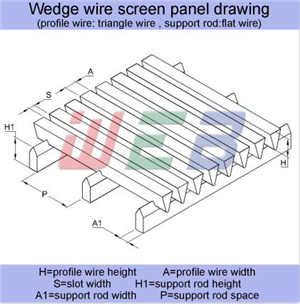

Using the wedge wire screen panel technical drawings above as reference please enter your desired specifications below

A. Panel dimensions:(required)

Length x Width

B. Frame required:(required)

C. Slot Size:(required)

0.2mm – 2mm View slot sizes

Additional information

Additional information helps us create a more accurate quote

Quantity:(required)

Material type:(required)stainless steel 304,304L ,316,616L or other material

Frame type:

If applicable

Other / Custom frame type:

Please fill out if OTHER or CUSTOM HOLES

Are additional supports required?

If so please provide system design pressure rating below

System design pressure rating (PSI)

Please fill out if "YES" was selected from the data
