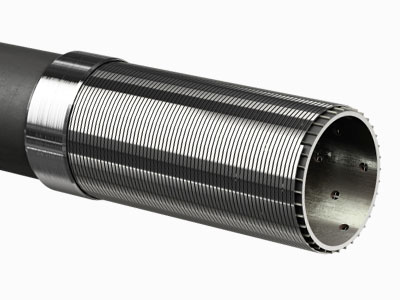

Wire wrapped sand control screen is a perfect combination of a high performance wedge wire screen tube and a strong internal pipe. It utilises stainless steel V-shaped wire wrapped and welded onto supporting rods to form a outer screen that is assembled onto the perforated base pipe.

Wedge wire wrapped screen used as well screen provides down-hole sand control in oil, gas, waterflood, steamflood, water, and disposal wells. The screen is a filtration system for preventing sand and gravel from entering the screen, while allowing production fluid to flow into the well. The wire wrapped screen has almost 10 times more inflow area than slotted liners, the unique design help extend well life and reduce maintenance costs. For the section of profile wire is V shaped, the screen slot is narrow in the above and wide in the below, and thus be easy to leakage, wear and corrosion resistance, avoiding clogging and ensure smooth filtration.

Benefits

Self-cleaning

V type wire, non-clogging slot

Continuous slot opening, increase flow and productivity

Reduce maintenance cost

Long service life

Materials

Wire wrapped sand control screen is available in three different series of wire materials:

Austenitic stainless steel 200 and 300 series: Grade 201 (1.4372), Grade 202 (1.4373), Grade 304 (1.4301), Grade 304L (1.4306), Grade 316 (1.4401), Grade 316L (1.4404), Grade 321 (1.4541)

Ferritic stainless steel: Grade 430 (1.4016)

Martensitic stainless steel: Grade 410 (1.4006), Grade 420 (1.4021 )

Application

Unconsolidated formations

Offshore wells

Deepwater

Horizontal wells

Vertical wells

Deviated wells

Cased holes

Open hole completions

Stand alone completions

Gravel pack completions

Type

Technical parameter

Wire wrapped sand control screen data sheet

When ordering or requesting a quote for wire wrapped sand control screen, please specify:

Number of pipes

Diameter eg. 6 5/8 inch

Wedge wire eg. 3 mm x 5 mm

Slot Hole eg. 0.5 mm

Material eg. Grade 304 (1.4301)
