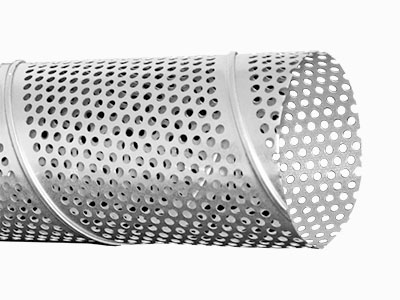

Perforated spiral welded pipes are made of perforated sheet which coiled to the unfinished piping according to certain spiral line's angle, then finished with automatically welded of continuous sheets of perforated metal. When squeezed in some parts from external, under outside pressure, the forced part will have reduced or closed gap and ensures the reliability of sand control. Compared with straight welded tube, spiral welded tubing is approximately 15% stronger. Spiral metal tube does great job in holding high pressure and high impacts. The spiral welded pipe is mainly used in the petroleum industry as interior and outer protective covers for petroleum sand control pipes.

Benefits

Good corrosion resistance

High precision and high quality of welding

Stainless steel, carbon steel, excellent anti-corrosion

Easy installation

Materials

Perforated spiral welded pipes is available in three different series of wire materials:

Stainless steel 200 series : Grade 201, Grade 202

Stainless steel T 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321

Stainless steel 400 series : Grade 410, Grade 420, Grade 430

Application

Support of filter

Sand control screen

Type

Technical parameter

Perforated spiral welded pipes data sheet

When ordering or requesting a quote for perforated spiral welded pipes, please specify:

Number of pipes

Diameter eg. 5 inch

Hole size eg. 6 mm

Pitch eg. 10 mm

Length: 1.5m

Material eg. Grade 304 (1.4301)
