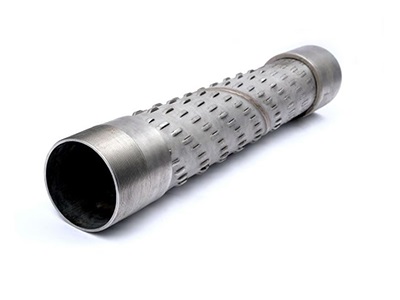

Bridge slotted screen pipe is manufactured from precision punched quality sheet metal, typically the bridge slotted are formed with perforated plate sheets, and then shaping as pipes by means of bending with appropriate diameters via cylinders. The bridge openings arranged in rows and are staggered to reduce the negative effect on the screen’s strength. Bridge slotted screen are mainly used in the aquifer, its special craft structure prevent sand enter into the slot, change the flow of water, and reduce water resistance. The bridge slot usually stay unblocked and preserve the hydraulic efficiency.

Benefits

Permeability capability

Tensile, load, collapse strength

High corrosion resistance

High density, accurate slot opening

Resistance to twisting, compressive and tensile forces.

The special structure of slot avoids the particles are stuck in the slot.

Rotating ability during installation

Simple to install

Easy down hole cleaning

Materials

Bridge slotted screen pipe is available in three different series of wire materials:

Stainless steel 200 series : Grade 201, Grade 202

Stainless steel T 300 series : Grade 304, Grade 304L, Grade 316, Grade 316L, Grade 321

Stainless steel 400 series : Grade 410, Grade 420, Grade 430

Application

Water wells

Jacket of sand control screen

Type

Technical parameter

Bridge slotted screen pipe data sheet

When ordering or requesting a quote for bridge slotted screen pipe, please specify:

Number of pipes

Diameter eg. 8 5/8 inch

Hole size eg. 35 mm x 10 mm

Length eg. 3 m

Material eg. Grade 304 (1.4301)
