The End Types of Wedge Wire Screen Tube
Wedge wire screen tubes have different end types to suit different applications, which includes,but not limit to,standard,threaded type,ring type,flange type etc.
Below are the main end types:
End types | Description | Picture |

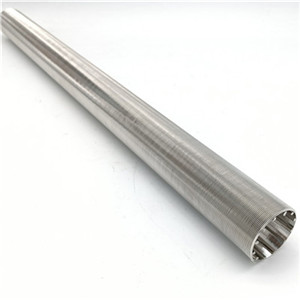

Plain ends | The standard wedge wire screen tube is the most common used tubes. Standard end tubes are always welded onto the support profiles. |
|

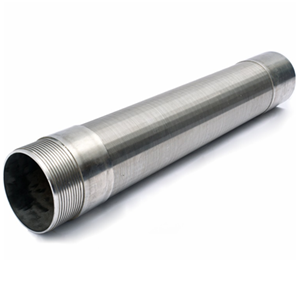

Threaded | Threaded end wedge wire screen tubes are composed of a male thread on one end and a female thread on the other end. |
|

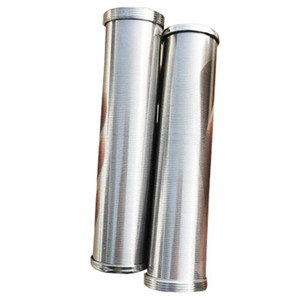

Weld Ring | The stainless steel rings are welded onto the two ends of wedge wire tube |
|

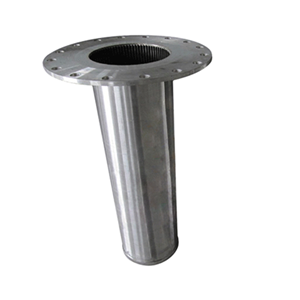

Flange type | The wedge wire screen tubes can be supplied with flanges. The flange provides a larger surface area, allowing for easier attachment to other components using bolts or clamps. |
|

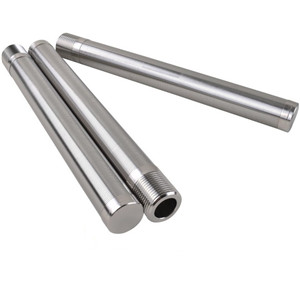

Cap end | The cap end wedge wire screen is composed of a cap on one end and and a threaded connection on the other end. |
|

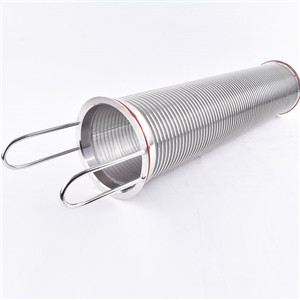

Customized type | The wedge wire tubes can be supplied with custom end. It may include special connections to fit specific equipment or systems. |
|
